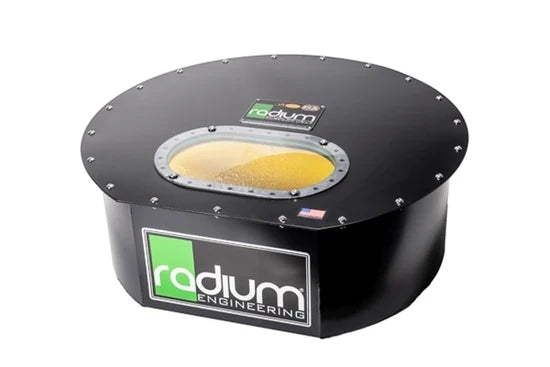

Racing fuel cell is a sealed, purpose-built tank designed to supply fuel reliably under high-G driving while meeting safety and series rules. This guide walks through the key selection criteria—capacity, baffling, fuel compatibility, pickup design, mounting, and compliance—so you can pick the right setup for your car and race format.
Quick answer — which racing fuel cell setup to choose
For most sprint and club-level road racing, choose a baffled fuel cell sized for your session length with materials rated for your fuel (E85 or gasoline), a well-placed pickup, and a secure mounting system. Endurance events favor larger capacity and redundancy, while autocross and hillclimb cars can prioritize center-of-gravity and lighter weight.
Key selection criteria to evaluate include: capacity to match session length and pit strategy, baffling or surge prevention for consistent pickup, fuel compatibility for ethanol blends, pickup location and plumbing for minimal vapor pockets, mounting and weight distribution for handling, and regulatory/safety requirements for your racing class. If you want a production-ready option to inspect for sizing and fittings, consider the Radium R10A Radium Fuel Cell 10 Gallon which demonstrates common design choices and ports useful for many builds: Radium R10A Radium Fuel Cell 10 Gallon.
- Capacity: session length vs weight
- Baffling: slosh control and pickup reliability
- Compatibility: E85/ethanol-rated materials
- Mounting: COF impact and accessibility
- Compliance: series-specific rules and vents
Why fuel capacity and baffling matter most
Estimating capacity starts with session length and your car’s consumption. A simple method: multiply average lap fuel use by number of laps plus reserves for pit time and safety laps. For sprints, smaller tanks reduce weight and improve balance; for endurance, larger tanks minimize stops. Always factor in the trade-off between running lighter versus the time cost of additional pit fuel stops.
Baffling and anti-surge features directly affect whether the pump can keep a steady feed during sudden direction changes. Internal baffles, foam, and check-valve pickups prevent momentary fuel starvation under hard braking, cornering, or acceleration. Surge tanks or external surge cells are useful when packaging prevents ideal baffling; they give the pump a localized, consistent source of fuel even if the main cell experiences slosh.
Capacity also interacts with center of gravity and class limits. A full tank raises mass and can shift balance rearward; placing the cell low and centered reduces handling penalties. Many sanctioning bodies set maximum capacities or require specific baffling/foam; check those limits before finalizing a size, since changing capacity after fabrication can be costly and impact safety certification.
Choosing the right mounting and placement for your car
Common mounting locations include the trunk or rear subframe, or inside the cockpit for certain classes that allow it. Placement decisions should prioritize a low center of gravity and minimal moment arm from the rear axle. Reinforce local chassis areas where the cell mounts and use rated mounting brackets and hardware to meet load and crash standards, ensuring the cell remains secure in contact or collision scenarios.
Routing fuel lines, vents, and return plumbing influences placement. Vent lines should run upward to a safe, external termination and include rollover valves where required. Keep fuel plumbing short and return lines direct to minimize vapor lock risk and avoid routing near high-heat components like exhaust headers. For product options and mounting-friendly designs, review manufacturer universal collections which often include multiple port and bracket configurations; one example collection to check is Radium Universal Fuel Cells.
Accessibility for maintenance and pickup servicing matters. Design mounts so the cell can be removed without cutting or disassembling major chassis components. Plan for fuel-sender access and for installing inline filters and quick-disconnects. Properly vented, well-mounted installations reduce the chance of vapor accumulation and make inspections straightforward during tech scrutineering.
Common mistakes to avoid when selecting and installing a racing fuel cell
A frequent error is choosing the wrong capacity—either too small, leading to extra pit stops, or too large, adding unnecessary mass. Corrective step: calculate consumption with margin and verify series limits before ordering. Another mistake is ignoring fuel compatibility; ethanol blends need ethanol-rated bladder, hoses, and seals. Always confirm materials are compatible with E85 or methanol if you plan to run them.
Skipping surge prevention or using a poorly designed pickup causes intermittent starvation. If your layout has long or high pickup runs, add a surge tank or internal baffle upgrades. Using improper fittings or lines is also common—use AN or rated push-lock lines and fittings specified for racing fuel to avoid leaks. Ensure vents include check or rollover valves as required by regulations and to prevent siphoning or spills.
Non-compliance with your race series is a costly oversight. Before installation, review safety rules on venting, bladder type, and mounting. Also ensure proper grounding to avoid static buildup and route vents away from intake air. When in doubt, consult with a licensed fabricator or scrutineer to correct installation errors before competition.
FAQ
How do I determine the right fuel cell capacity for sprint versus endurance racing?
Calculate your car’s average fuel consumption per lap, multiply by race distance plus reserve, and add pit strategy margins. Sprints typically use smaller tanks to save weight; endurance races require larger capacity or planned refueling to minimize stops. Always check class capacity limits and factor in driver changes and safety reserves.
Can I use E85 in any racing fuel cell and what materials are compatible?
Not every fuel cell is compatible with E85. Use cells with an ethanol-rated bladder and specify hoses, seals, and fittings compatible with alcohol blends. Materials like Viton seals and certain fuel-rated nylons are common; confirm with the manufacturer to prevent swelling or degradation.
Do I need an external surge tank or will a baffled fuel cell suffice?
A baffled cell suffices for many installations if the pickup is close to the pump and baffling is well-designed. External surge tanks are recommended when packaging prevents ideal baffling or when the pump sits far from the cell outlet. Choose based on your car’s motion profile and pickup geometry.
What safety equipment and regulations should I check before installing a racing fuel cell?
Check series rules for bladder type, venting, rollover valves, mounting specifications, and fire suppression requirements. Verify vent termination, grounding, and pressure-relief provisions. Many sanctioning bodies require certified bladders and specified mounting hardware; confirm these before fabrication.
The Radium R14A Radium Fuel Cell 14 Gallon is a sensible choice for racers who need mid-range capacity with modern baffling and port options, making it suitable for mixed sprint and endurance use.
Radium R14A Radium Fuel Cell 14 Gallon
Radium R14A 14-gallon competition-grade fuel cell from Radium Engineering offers certified RA-series safety (FiA, SFI) and a fuel-resistant polymer bladder for high-performance racing applications.
Key takeaway: prioritize capacity, baffling, material compatibility, and secure mounting when choosing a racing fuel cell. Start with clear fuel-use estimates and series rules, and consult manufacturers or fabricators for installations. If you have specific car or series details, share them and I can help narrow options further.
