Radium Surge Tank vs Fuel Cell: Picking the Right Fuel Delivery Upgrade
High-power fuel systems fail in one of two ways. Either the engine runs dry the moment you go deep into a long corner with a low tank, or the tank itself stops being safe, simple and competition-legal enough to live with. Radium Engineering solves both problems, but not with the same product. A radium surge tank keeps your pumps continuously fed. A radium fuel cell replaces the tank entirely with a competition-grade unit.
Knowing which one your build actually needs saves money, brackets and a weekend under the car. Here is how we recommend working through the decision.
Start With The Problem You Are Solving
Before you compare part numbers, be honest about what is failing.
If the car still drives on the street, still fills at the standard filler neck, and the only symptom is a lean spike or fuel pressure drop under hard cornering or hard acceleration, you have a fuel starvation problem. That is the surge tank's home turf.
If you are building a dedicated competition car, running a fuel system from scratch, or need a tank that satisfies a organising body's safety requirements for capacity and containment, you are into fuel cell territory.
The two overlap, but they are not interchangeable. A surge tank is an addition to your existing tank. A fuel cell is a replacement for it.
Radium Surge Tank: The Swirl Pot That Fixes Fuel Starvation
A radium surge tank, sometimes searched as a radium engineering surge tank, is a small canister that holds a reserve of fuel around your high-flow pump or pumps. Feed it from the stock tank with a low-pressure lift pump, and the swirl pot stays full even when the main tank is sloshing, g-force-loaded, or running low. The high-pressure pump then draws from a stable, always-submerged supply instead of a pickup that keeps uncovering.
For most UK performance builds, that is the whole fix. You keep the factory tank, the factory filler and the factory gauge, and you bolt a swirl pot into the system.
MPFST And MPFST-R: Which Version Fits Your Pump
Radium sells the surge tank in pump-specific configurations, so the correct choice comes down to what you intend to run inside it.
The Radium MPFST fuel surge tank suits the Walbro F90000267, F90000274 and F90000285 family, the big in-tank pumps most builders reach for on a serious E85 or high-boost setup. Pumps are not included, so you specify your own.
The Radium MPFST-R fuel surge tank is the version for a Walbro GSS342, an AEM 50-1200 or a DeatschWerks DW440. It adds a built-in regulator that returns low-pressure fuel directly into the surge tank rather than all the way back to the main tank, which keeps the swirl pot topped up and simplifies the plumbing.
Either way, the canister can support up to three high-flow pumps, so it scales with the build rather than needing replacement when you turn the boost up.
The RA Surge Tank With Integrated FPR
If you want the cleanest possible installation, the Radium Engineering RA fuel surge tank with integrated FPR packages the regulator inside the canister. It supports Ti Automotive E5LM, Walbro F90000267/274/285 and GSS342 pumps plus the AEM 50-1200. Fewer fittings, fewer leak points, fewer lines running forward to a remote radium fuel pressure regulator.

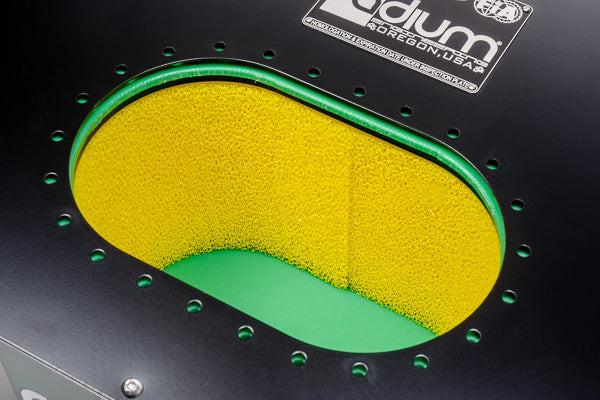

Radium Fuel Cell: When You Need A Competition-Grade Tank
A radium fuel cell is a different kind of purchase. The Radium R10A 10-gallon fuel cell is designed and manufactured by Radium Engineering to meet the safety requirements set by FiA and SFI. It is a purpose-built tank, not a canister you hang off the stock one.
Choose this route when:
- You are building a competition car from the ground up and want a tank that satisfies capacity and containment rules.
- You need a known, fixed fuel volume rather than whatever the factory tank holds.
- You are relocating the fuel system for weight distribution, a rear-mount setup, or a dedicated track car.
A fuel cell is more work and more commitment. It also removes the compromises the factory tank forces on a race build.
If you run a saddle-style or split tank and need to move fuel from the passive side to the pickup side, the Radium Venturi Jet Pump Kit handles that transfer on high-flow aftermarket pumps, with interchangeable venturi orifices to match your pump flow.
Install Complexity: What Each Route Costs You
A surge tank is an add-on. You keep the stock tank and filler, add the swirl pot, run a lift pump feed and a return, and you are done. On a street-driven WRX, EVO, Fiesta ST or Supra, that is a realistic weekend job with the car back on the road.
A fuel cell is a system. You are removing the factory tank, mounting and venting a new one, and re-plumbing the fill, vent and feed. It is the right call for a race car and the wrong call if you still need to pass an MOT and park on a driveway.
So Which One Should You Buy?
Run a surge tank if your car is street-driven and the symptom is fuel starvation under load. Pick the MPFST-R for GSS342, AEM 50-1200 or DW440 pumps, the MPFST for the Walbro F90000267/274/285 family, and the RA unit if you want the regulator integrated into the canister.
Run a fuel cell if you are building a competition car, need FiA/SFI-compliant capacity, or are designing the fuel system from scratch.
Either path still needs the supporting hardware: quality AN lines, the right fittings, and a radium fuel pressure regulator or damper to keep pressure stable. That is where a proper fuel system stops being a single part and starts being a package.
Buying Genuine Radium Fuel Hardware In The UK
We stock the Radium surge tanks and fuel cells above as an authorised UK dealer, so you get genuine fitment, the correct pump compatibility and UK delivery rather than a two-week wait on a US order. If you are unsure which surge tank version matches the pump you already own, tell us the pump part number and we will point you at the right canister.
