Radium Engineering Spare Tyre Fuel Cell Installation Kit

Radium Engineering spare tyre bracket kit provides a simple fuel cell mounting solution in the spare tire well area.

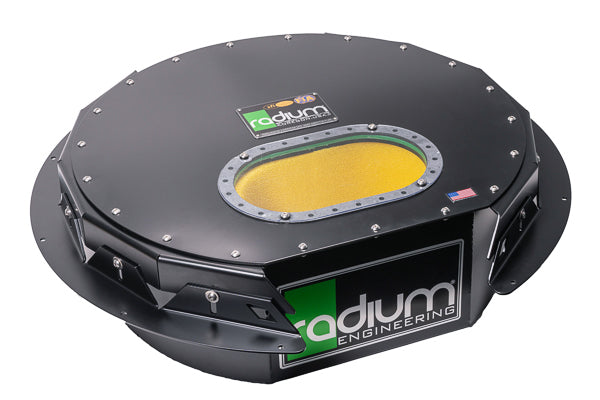

The kit is compatible with the Radium RA-Series Spare Tire Cell (shown above) as well as others on the market.

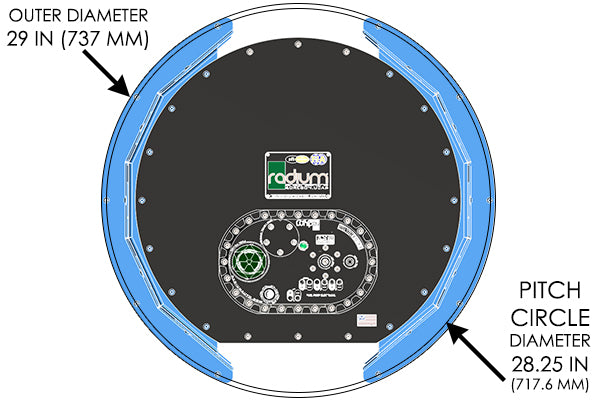

Review the dimensions below and measure the vehicle to check for compatibility.

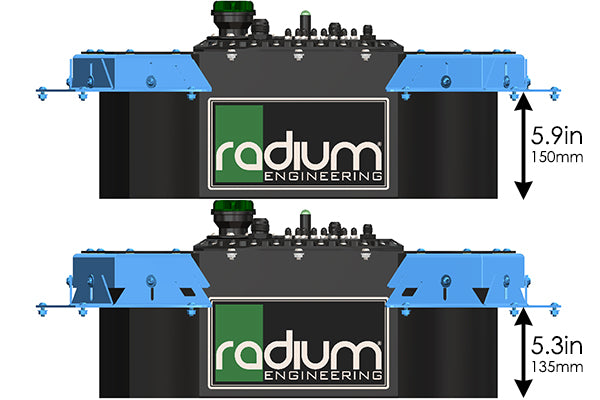

Two sets of rivet nuts are pre-installed in the brackets. The upper set is used to make fuel cell removal fast and easy. The second set is used for fuel cell height adjustment, as shown below.
Because most spare tire wells differ, there are hole slots that permit a 0.6" (15mm) height adjustment.

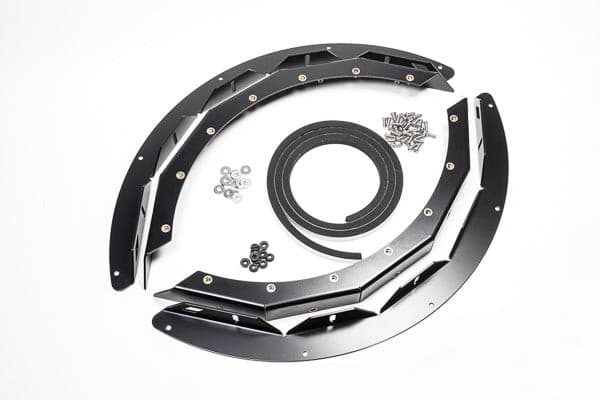

INCLUDED
-Powder coated aluminum mounts
-Stainless steel mounting 1/4"-20 bolts
-Black zinc-plated 1/4"-20 flange nuts
-Zinc-plated 1/4"-20 rivet nuts
-Mounting adhesive foam
