20-0747-297Regular price $154.00 Sale price $112.00 Save $42.00

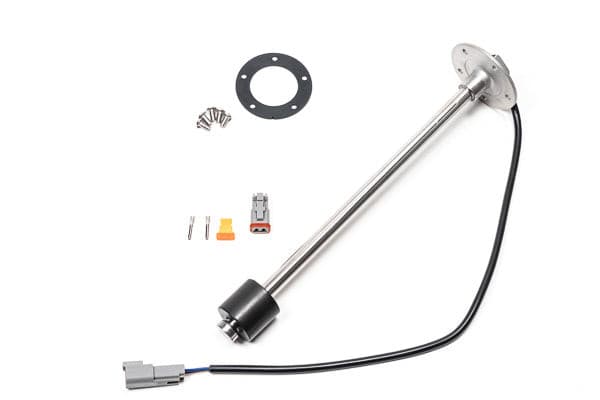

Radium Engineering fuel level sensor uses the standard SAE 5-bolt mounting pattern, extensively used with the Radium Fuel Cell Surge Tank
Fuel level sender for use in competition fuel cells. E85 compatible 0-90 Ohm output.
Full stainless steel sealed construction with magnetic float.
Suitable for use with gasoline, diesel, water, and all alcohol based fuels including methanol, ethanol, E85, etc.
-All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges.)
-Radium does not sell fuel level gauges, but a popular option is this Autometer Fuel Level Gauge
-To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.

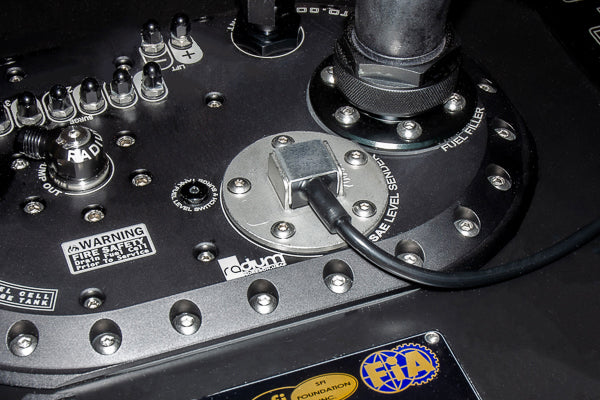

-If purchased with a Radium Fuel Cell Surge Tank (FCST), the sender will come pre-installed.
-If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter
PROBE MATERIAL: 304 Stainless Steel
FLOAT MATERIAL: Plastic Buna-N
MOUNTING FLANGE: 5-Bolt SAE
MOUNTING GASKET: FKM
RESISTANCE: 0 (Empty)-90 (Full) Ohms
PVC WIRES: 18" (460mm) with PA Cover
CONNECTORS: Deutsch DT, 2P
OPERATING TEMP: -40F to +185F
1. The fuel level float shroud from Radium 20-0847-XXX is only compatible with newer Radium FCSTs (20-099X-XX).
2. For previous Radium 20-049X-XX and 20-069X-XX FCST versions, the non-shrouded Radium 20-0747-XXX must be used.
3. Non-shrouded Radium 20-0747-203 and 20-0747-297 level senders are compatible with all Radium FCST part numbers.

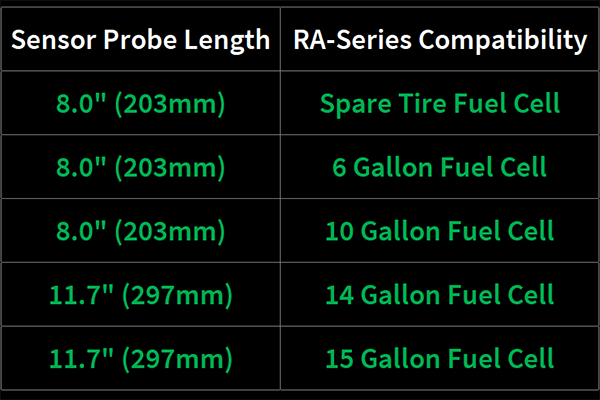

Fuel level sender with 0 (empty) to 90 (full) ohm output. 11.7" (297mm) probe length. Compatible with all fuel types. Output is in approximately 10 ohm increments. Designed for use with Radium Fuel Cell Surge Tanks (FCST) and 6 or 10 gallon Radium fuel cells.
