Radium Engineering Remote-Mount SVF Swing Valve Filler – 2.25in

Radium Engineering 20-1203 REMOTE MOUNT, SWING VALVE FILLER, 2.25IN

The fuel filler typically secures to the vehicle body. The fuel cap swings open like an OEM "capless" fuel filler. Nothing has to be unscrewed. The swing valve seals using an FKM O-ring. Furthermore, a press-fit dust cap tethers from the flange mount for quick access. The 30mm opening is large enough for both gasoline and diesel fill nozzles.

The fill neck has a machined hose barb connection for 2.25in filler hose. The outer diameter is 4.75in and uses 4.25in P.C.D for the five M5 bolts. Total height is 4.1in. Requires a 77mm (3.03in) hole to be fabricated.

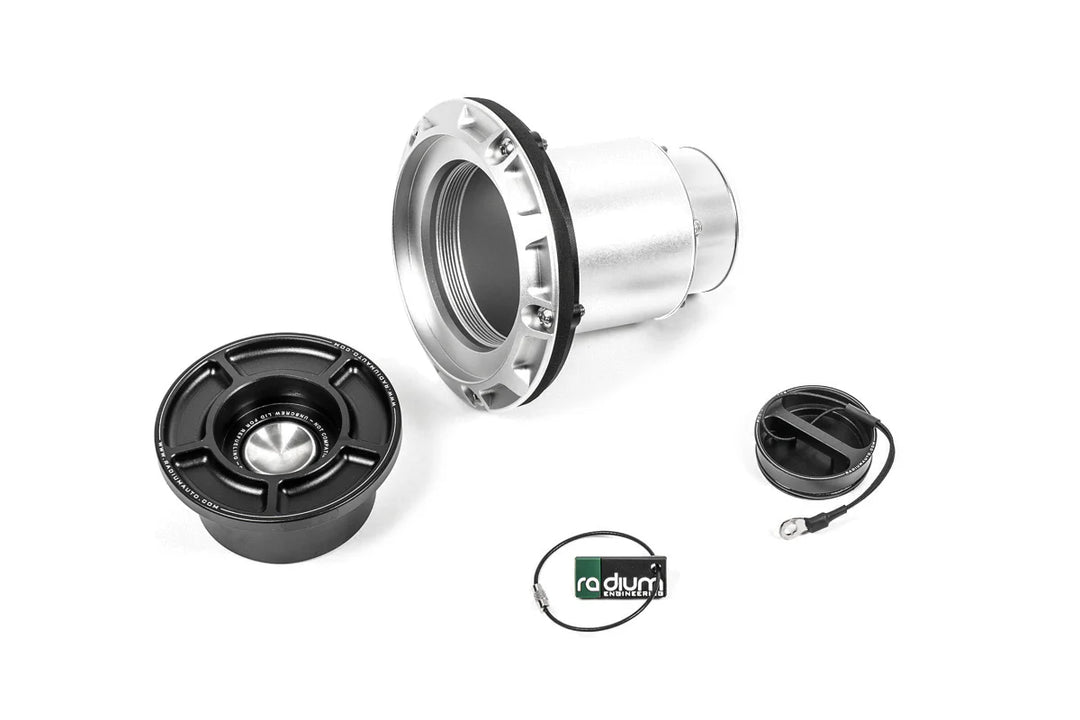

INCLUDES

• Swing Valve Cap
• Flanged Fill Neck for 2.25in ID Hose
• Ozone/Flame Resistant Gasket
• Anodized Aluminum Nut Ring
• Stainless Steel M5 Bolts
• Tether Components

NOTES

• Uses the same threads as the dry break and the standard fill cap. They are all interchangeable.
• Does not include accessories to connect to the fuel tank.
• Can be upgraded later to a dry break using Radium 20-0549-V.
