20-0366-00Regular price $1,689.00 Sale price $1,225.00 Save $464.00

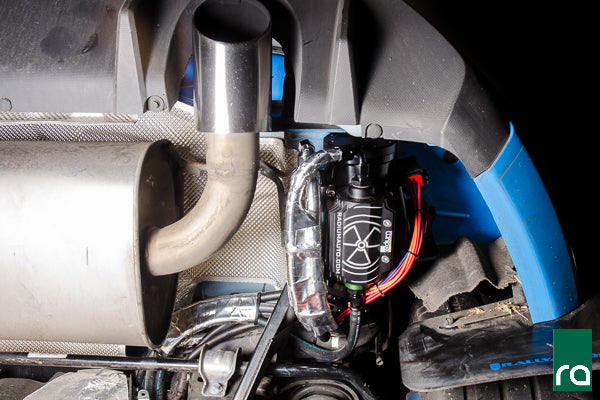

Radium Engineering comprehensive installation kit includes everything needed to install a Radium fuel surge tank with dual 39mm fuel pumps in a 2013+ Focus ST and 2015+ Focus RS. If not using port injection, consider this FST kit HERE instead

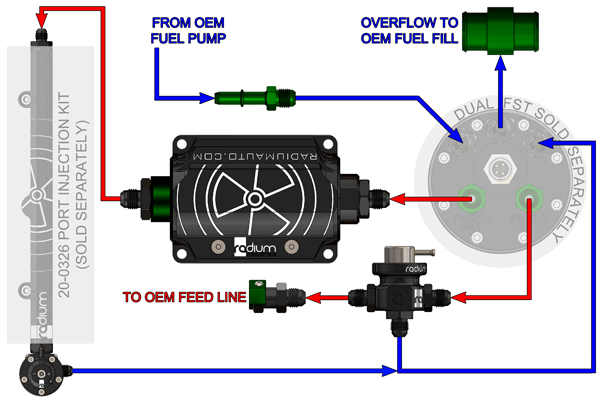

This system uses 2 fuel pumps in the surge tank. Each pump runs in a separate independent fuel system. One pump is used to replace and mimic the OEM fuel supply line and feed the OEM HPFP. The other pump is used to supply fuel to an aftermarket port (secondary) injection fuel rail. Both pumps are protected from fuel starvation as the OEM low pressure fuel pump(s) are redirected to supply fuel to the FST. Overflow fuel returns back into the OEM fuel filler hose with an included billet adapter.
The new FST pump supplying the OEM HPFP is regulated with a non adjustable Radium FPR. This can be vacuum referenced if 1:1 fuel pressure is required or ran static to mimic the stock system. The new FST pump that supplies the separate port injection system routes fuel through a Radium 6 micron microglass filter. To regulate the port injection fuel, a black Radium Engineering Direct Mount Regulator with an 8AN ORB inlet is included. This regulator will mount to most aftermarket port injection fuel rails including the fuel rail provided with Radium 20-0326.

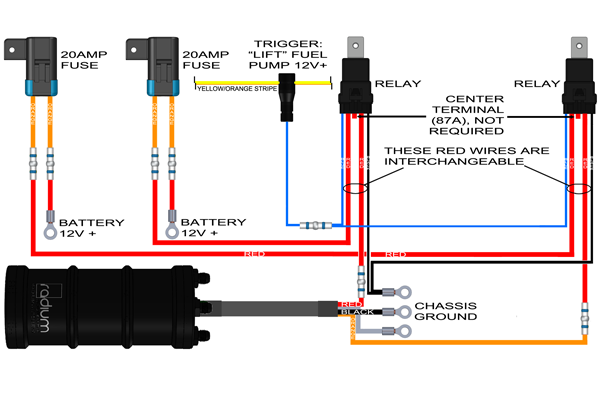

Also included are wiring components with flying leads featuring Raychem solderless butt splices, and weatherproof fuse and relays to drive the FST fuel pumps. Wiring is very simple and takes less than 30 minutes to assemble. No soldering is required.

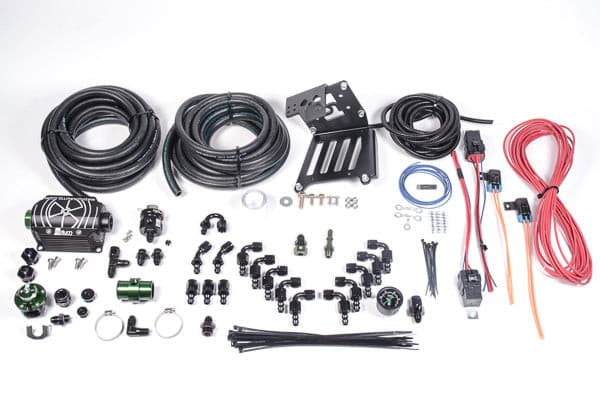

What is Included?
-Black DMR Fuel Pressure Regulator, 8AN ORB
-Fuel Pressure Regulator, Non Adjustable Bosch Top
-6 Micron Microglass Fuel Filter with Heat Exchanger
-Aluminum MK3 Focus FST Mounting Bracket
-Silicone-Filled Fuel Pressure Gauge
-Aluminum Push Lok -6AN Hose Ends
-AN and OEM Style Adapter Fittings
-Vapor Shield 3/8" (-6AN) EFI Hose
-Wiring Components with Relay and Fuse
-Stainless Steel Hardware
