Specifications, compatibility and supplied components

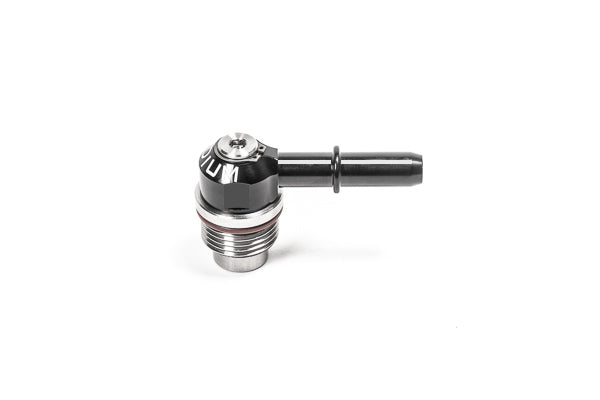

Radium Engineering 10AN ORB Swivel Banjo PCV Valve to 10mm SAE Male PCV valve (positive crankcase ventilation) systems. Do not mistake this for a simple one-way check valve. The PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on current engine load. Proper PCV valves prevent the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, the PCV valve prevents combustible vapors from igniting in the crankcase.
20-1000-1010S-PCV SPECIFICATIONS
Quick Connect Material: Anodized Aluminum
10AN ORB Material: Stainless Steel
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 10mm SAE Quick Connect Male
Feature: Low Profile 90 Degree Swivel
NOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
