Radium Mazda Injector Seat 1 Piece

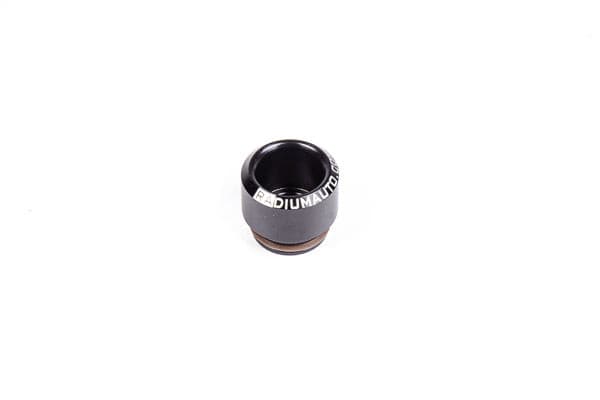

Radium Engineering machined aluminum injector seats used in Radium fuel rails for Mazda/Eunos Cosmo and RX-7 rotary engines. They are required when converting the OEM 16mm injector seat's counterbore to 14mm which is more common with popular injector lower O-rings. They simply "pop" into the OEM injectors bore. They were designed specifically to be compatible with or without the OEM fuel injector diffusers installed. They seal to the machined injector counterbore using the included FKM O-ring.

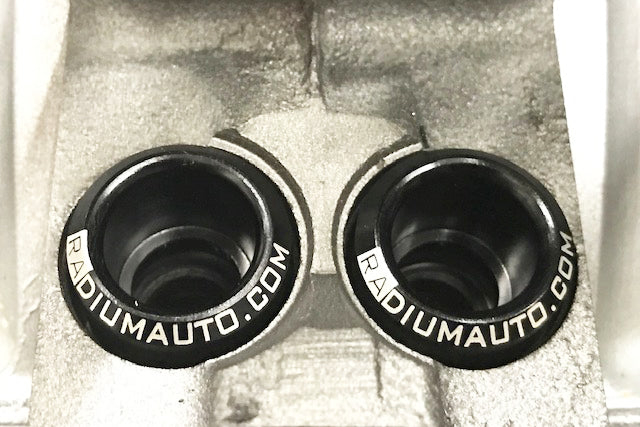

They can be used for the primary fuel injector iron ports (shown below).

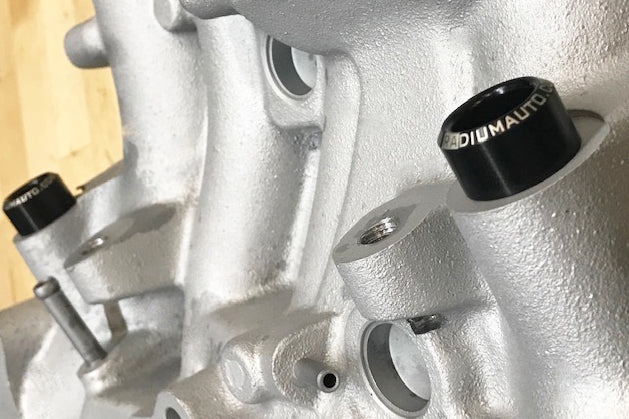

They can also be used for OEM intake manifold secondary injector ports (shown below).

NOTE: most aftermarket lower intake manifolds are already machined with 14mm lower injector O-ring ports

FEATURES
-Compatible with or without OEM diffusers
-CNC Machined Billet 6061 Aluminum
-Type-II Black Anodizing
-Laser Etched Logo
-Boost and fuel compatible FKM O-ring

SOLD INDIVIDUALLY
13B-RE requires 4 total (2 primary+2 secondary)
13B-REW requires 4 total (2 primary+2 secondary)
20B-REW requires 6 total (3 primary+3 secondary)
