Specifications, compatibility and supplied components
Product details
Radium Engineering four-port fuel manifold for Bosch 044 pumps (part number 20-0063). Full original technical specifications, fitment, supplied parts and installation details follow below.
Radium Engineeing manifold compatible with 044 style bosch fuel pumps This aluminum CNC machined fitting allows flexibility when plumbing a coolant or fuel system using multiple pumps or fuel rails. It features two -6AN ORB (9/16-18 thread) ports and two -8AN ORB (3/4-16 thread) ports. Approximately 4.5" long. The 6AN ORB ports are 2.85" apart (center to center). Fully anodized and resistance to all fuel types.

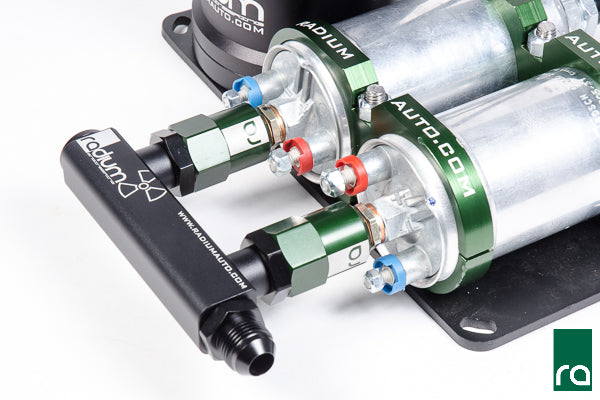

This allows flexibility when plumbing a fuel system using multiple Bosch pumps. NOTE: this kit eliminates the Bosch check valves. The pumps can NOT be staged.

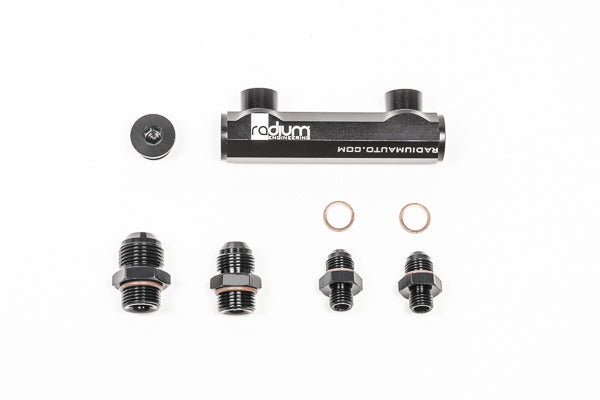

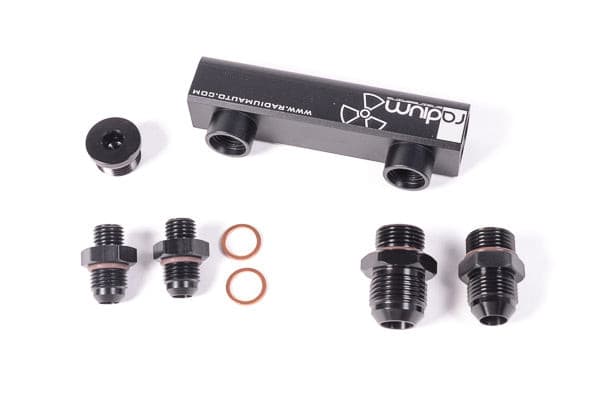

4-Port Manifold
8AN ORB Plug
8AN ORB to 8AN Male
8AN ORB to 10AN Male
6AN ORB to M12x1.5 Male (x2)
M12 Crush Washer (x2)
