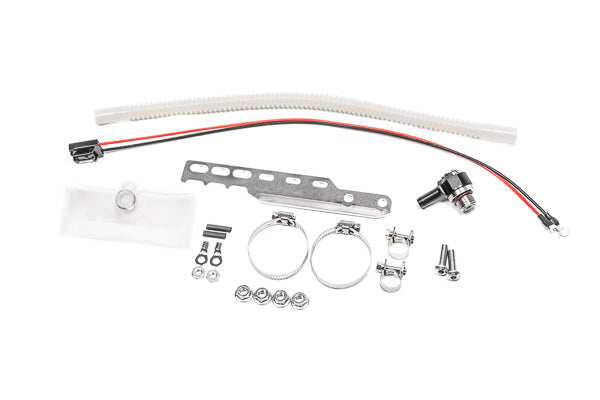

Radium Engineering Honda Dual Pump Add-On Part numbers 20-1796 and 20-1797 are supplementary add-ons to the fuel pump hanger
COMPATIBILITY
90-93 Acura Integra (All models/trims/RHD/LHD)
88-91 Honda Civic (All models/trims/RHD/LHD)
88-91 Honda CR-X (All models/trims/RHD/LHD)
NOTES:
1. Part number 20-1790 or 20-1792 are required to use these add-ons.
2. If a brushless pump was installed, a "dual pump add-on" CANNOT be used due to the extra brushless controller wires.
The architecture of this Honda fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult.
An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves with the following pumps, staging is permitted.
FUEL PUMPS
Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.
P/N: 20-1796
**AEM 50-1000
**AEM 50-1200
**AEM 50-1220
**+AEM 50-1230
**+AEM 50-1235
*Walbro GSS342
P/N: 20-1797
*Walbro F90000267
*Walbro F90000274
*Walbro F90000285
*+Walbro F90000295
*Sock filters are included in this kit for these pumps.
**Sock filters are included by the fuel pump manufacture.
+These pumps do NOT feature a check valve.
FEATURES
-Gasoline, Methanol, and E85 Compliant
-Compatible with Various Pumps
-Included Fuel Pump Filter Sock
-Plug and Play Installation
-Bolt-On Stainless Pump Bracket
