20-0974Regular price $850.00 Sale price $616.00 Save $234.00
Radium Engineering Bolt-in installation in trunk area of E46 BMW 3series Excludes Convirtable . Prevents fuel starvation issues during aggressive driving. Surge tank sold separately

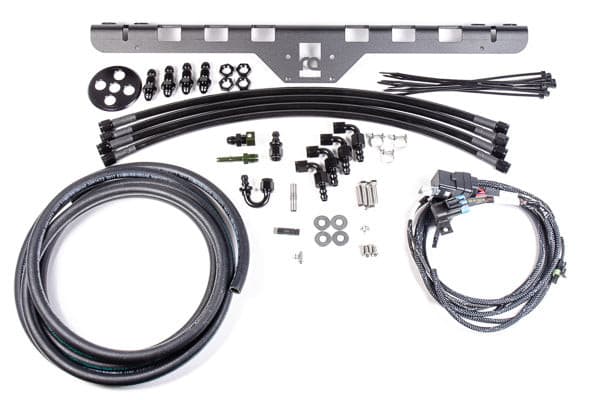

This comprehensive installation kit includes everything needed to install a Radium fuel surge tank. The base price is for the installation kit ONLY. The fuel surge tank (FST) is sold separately. It can be purchased HERE.

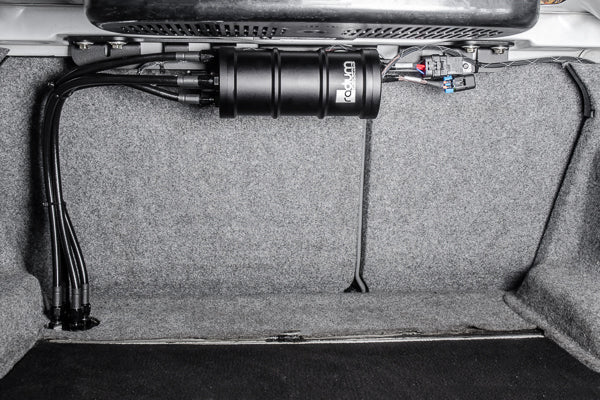

The BMW install kit locates the FST in a collision-safe area of the trunk behind the rear seat. The bolt-on aluminum mounting bracket features rubber isolating grommets to reduce fuel pump noise. Also included is a weatherproof fuse and relay to drive the new FST fuel pump. A Delphi weatherpak connector is also provided for the fuel pump trigger activation to make the entire system modular.

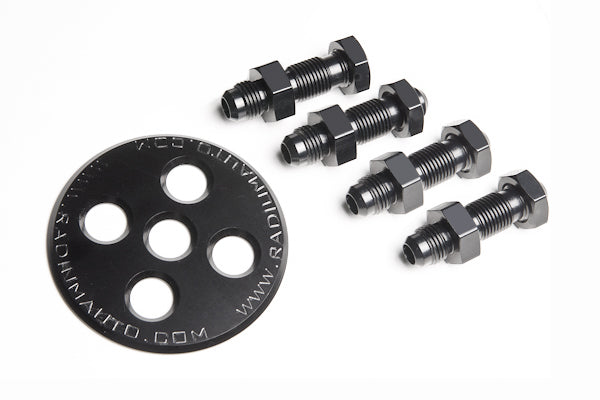

The PTFE hoses mate at a junction point in the trunk using the bulkead plate and 4 bulkheads fittings (shown above) for interior aesthetics.
-Preassembled 3/8" PTFE Hoses
-Aluminum Mounting Bracket with Vibration Isolators
-AN Bulkhead and Adapter Fittings
-Stainless Steel Hardware
-40 amp Relay and 25 amp Fuse
-Anodized Aluminum Bulkhead Plate
