Radium Engineering fuel rail for the BMW S54 engine is machined and anodized for a compatibility with all fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. It is compatible with OEM and aftermarket direct fitment fuel injectors. It features a large 0.65" internal bore with -8AN ORB (3/4-16 O-ring) threaded ports at each end and a 3/8 NPT female center port to accept a variety of adapter fittings for custom high-flow fuel system builds. The fuel rail is a direct bolt-on for all BMW's equipped with the S54 engine, including:
2001-2006 BMW M3
2001-2002 BMW Z3 M Coupe
2001-2002 BMW Z3 M Roadster
2006-2008 BMW Z4 M Coupe
2006-2008 BMW Z4 M Roadster
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers.
FUEL INJECTOR COMPATIBILITY
This fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.
INCLUDED

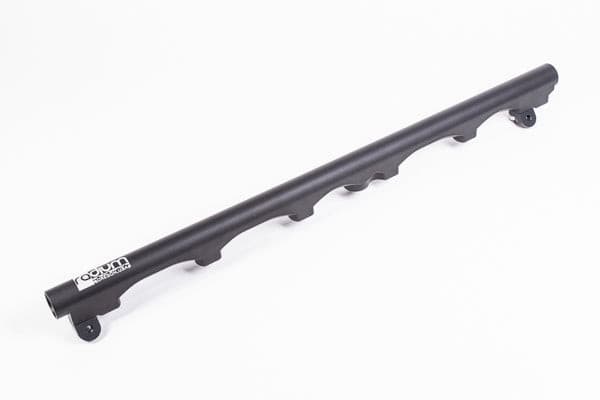

20-0070-02 Fuel Rail, BMW S54
This option is the fuel rail ONLY. No fittings or hoses are included. This is ideal when plumbing a custom high flow fuel system using an aftermarket regulator and custom fuel lines. Fittings and adapters are available separately.
OPTIONAL
20-0070-PK Fuel Rail Plumbing, BMW S54

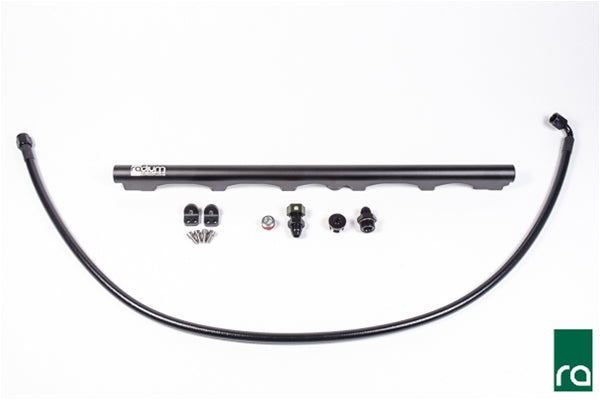

The plumbing kits contains the items in the image below, and allows easy hookup with the factory feed line and regulator located under the car. This kit is only compatible with the E46 M3. E85 compatible.
-1x 8AN ORB plug
-1x 3/8" NPT plug
-1x 6AN male adapter
-1x PTFE fuel feed hose
-1x SAE adapter to attach to factory regulator
