Radium Engineering in-tank fuel hanger with high-flow aftermarket pumps, the stock R35 fuel lines may not be sufficient. The fuel hanger feed kits include everything required to connect all 20-055X-0X Radium fuel hangers directly to Radium fuel rails. It comes with new PTFE feed lines and re-uses the factory feed line as the return for the regulator.
When selecting a feed kit, first choose the filter element type. Stainless steel elements can be cleaned and re-used, while microglass provides better filtration efficiency, but cannot be re-used

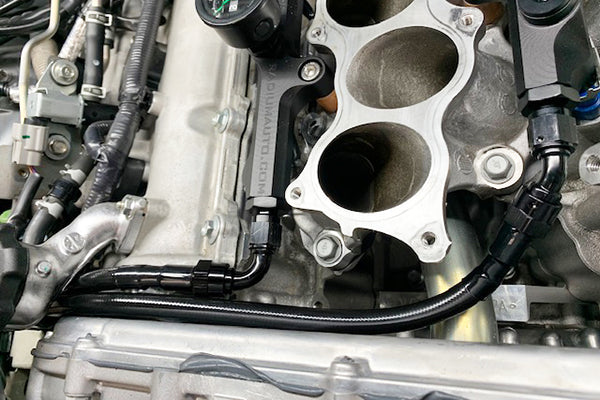

This kit includes hoses, fittings, fuel filter and other parts to provide high-flow feed lines from the Radium in-tank hanger up to the engine bay in the R35 Nissan GT-R. Dual 6AN lines are used to feed the rails.

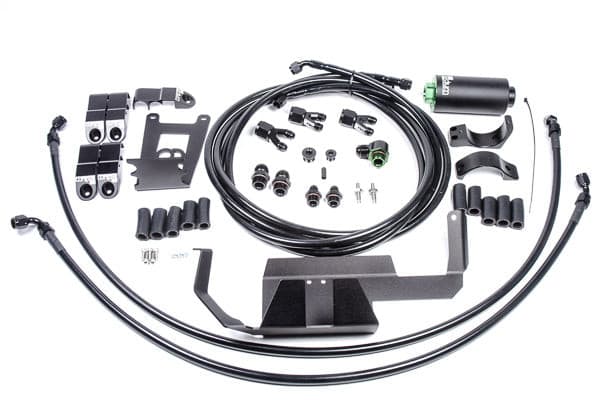

INCLUDES
-Fuel Filter (-03 Stainless, -05 Microglass)
-10AN ORB to 10AN Male Low Profile Fitting

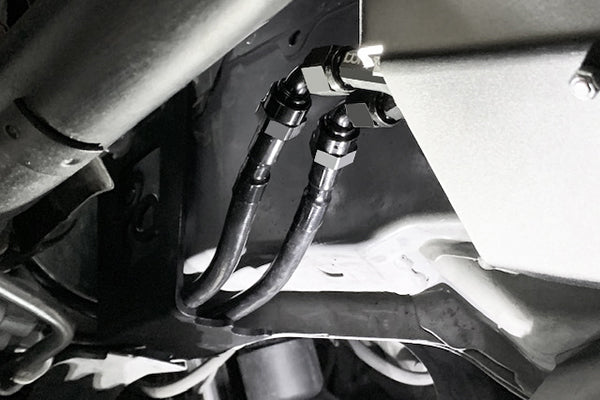

-10AN to 6AN Y-Adapter Fittings (x3)

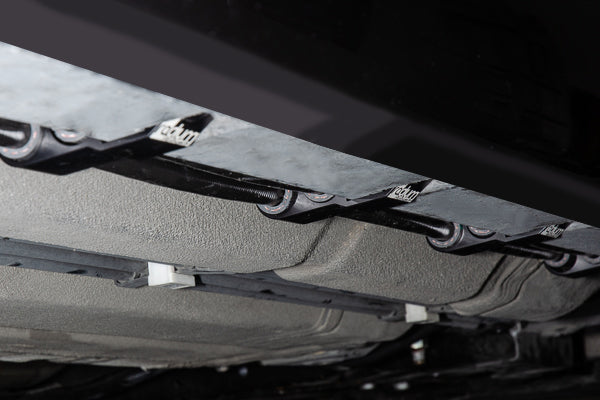

-Fuel Line Retaining Mounts (x5)

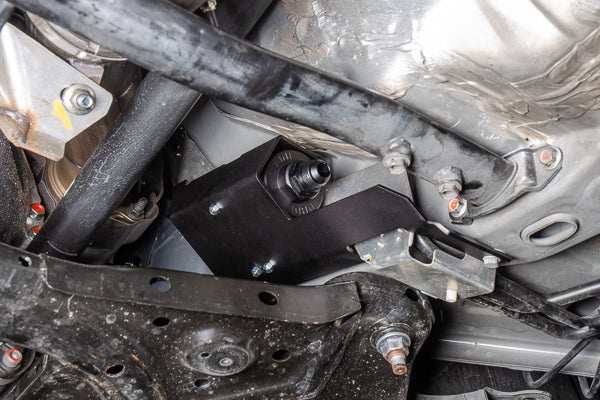

-R35 Filter Heat Shield Bracket
-60mm 2-Piece Filter Clamp
-6AN PTFE Fuel Hoses (x4)
-Stainless Steel Hardware
