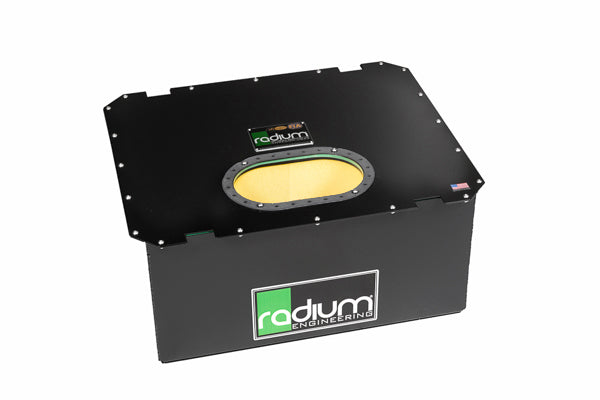

Radium Engineering R22A Radium Fuel Cell - 22 Gallon

20-0622

Regular price $1,272.00 Save $-1,272.00
/
Shipping calculated at checkout.

Only 4 items in stock!

Radium Engineering competition grade fuel cell provides maximum performance and safety for high performance vehicles. RA-series fuel cells are designed and manufactured by Radium Engineering to meet top safety requirements set forth by the worldwide safety organizations FiA and SFI. To learn why a certified fuel cell is superior to a fabricated tank

CONSTRUCTION

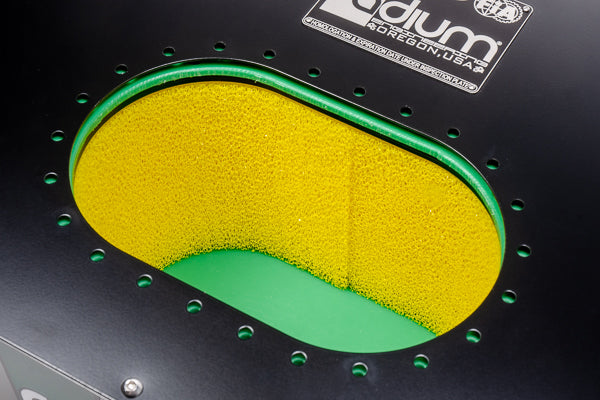

The heart of the fuel cell is the bladder (shown below in green). This component undergoes thorough testing and carries the critical certifications. Radium RA-series bladders are made from a special polymer that is resistant to ALL fuel types (gasoline, diesel, AV gas, E15, E85, ethanol, methanol, etc).
The bladder is housed in a lightweight powder coated aluminum enclosure that protects from damage and debris. Pre-cut explosion suppressing anti-slosh foam is included as well as an innovative threaded aluminum nut ring which makes fuel pump installation fast and easy.

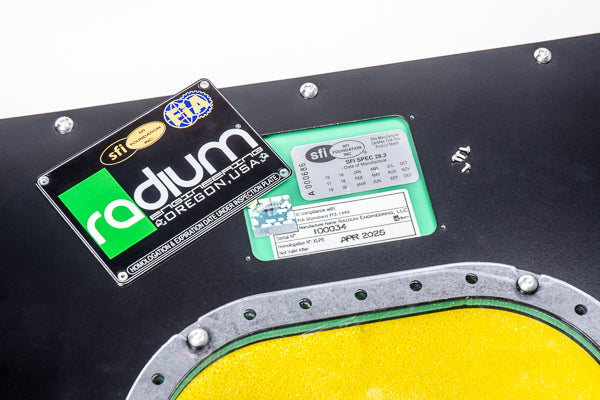

CERTIFICATIONS
The RA-series fuel cells have been tested and approved by FIA and SFI. All RA-series fuel cells are serialized and come with both certifications and associated paperwork.
Certifications are valid for 5 years from the date of manufacture. Radium does NOT offer fuel cells without certifications
SIZES
The manufacturing process for these fuel cell bladders inherently require large tolerances creating a variance in physical size. The volumes listed below are the expected ranges for each bladder. NOTE: These measurements do not account for any objects inside the fuel cell.

SIZES
The manufacturing process for these fuel cell bladders inherently require large tolerances creating a variance in physical size. The volumes listed below are the expected ranges for each bladder. NOTE: These measurements do not account for any objects inside the fuel cell.

20-0606
Gallons: 5.4 - 6.0
Liters: 20.3 - 22.7

20-0610
Gallons: 9.2 - 10.0
Liters: 34.8 - 37.9

20-0611
Gallons: 10.3 - 10.5
Liters: 38.9 - 39.7

20-0614
Gallons: 13.7 - 14.0
Liters: 51.9 - 53.0

20-0622
Gallons: 21.5 - 22.0
Liters: 81.5 - 83.3

20-0606
Gallons: 5.4 - 6.0
Liters: 20.3 - 22.7

20-0610
Gallons: 9.2 - 10.0
Liters: 34.8 - 37.9

20-0611
Gallons: 10.3 - 10.5
Liters: 38.9 - 39.7

20-0614
Gallons: 13.7 - 14.0
Liters: 51.9 - 53.0
INTERNAL DEPTH (TOP OF CAN TO BLADDER FLOOR)
20-0606, 7.7 in (195mm)
20-0610, 7.7 in (195mm)
20-0611, 7.7 in (195mm)
20-0614, 11.4 in (289mm)
INCLUDED
-Seamless Polymer Bladder
-Explosion Suppressing Anti-Slosh Foam
-Powder Coated Aluminum Enclosure
-Anodized Aluminum Nut Ring
-Removable Inspection Plate
-FKM 6x10 24-bolt Gaskets, x2
-Stainless Steel Hardware
-Certification of Conformance
All fuel cell sales are FINAL and cannot be returned or exchanged. Measure carefully prior to ordering.
