Radium Engineering Fuel Pump Hanger, Honda Civic Type R FL5, AEM / DW440 – 20-1090

Radium Engineering In-tank hanger for the 2022-on FL5 Honda Civic Type R. Supports one to three compatible pumps and retains the factory level sensor. This version accepts AEM 50-1220 or Deatschwerks DW440 brushless pumps. Not compatible with FK8 Type R. Pumps, external regulation, filtering and appropriate wiring must be specified separately unless supplied in a selected companion kit.

Manufacturer part number: 20-1090

This Radium Engineering fuel hanger is compatible with 1 or 2 or 3 aftermarket fuel pumps. The kit reuses the OEM fuel level sensor.

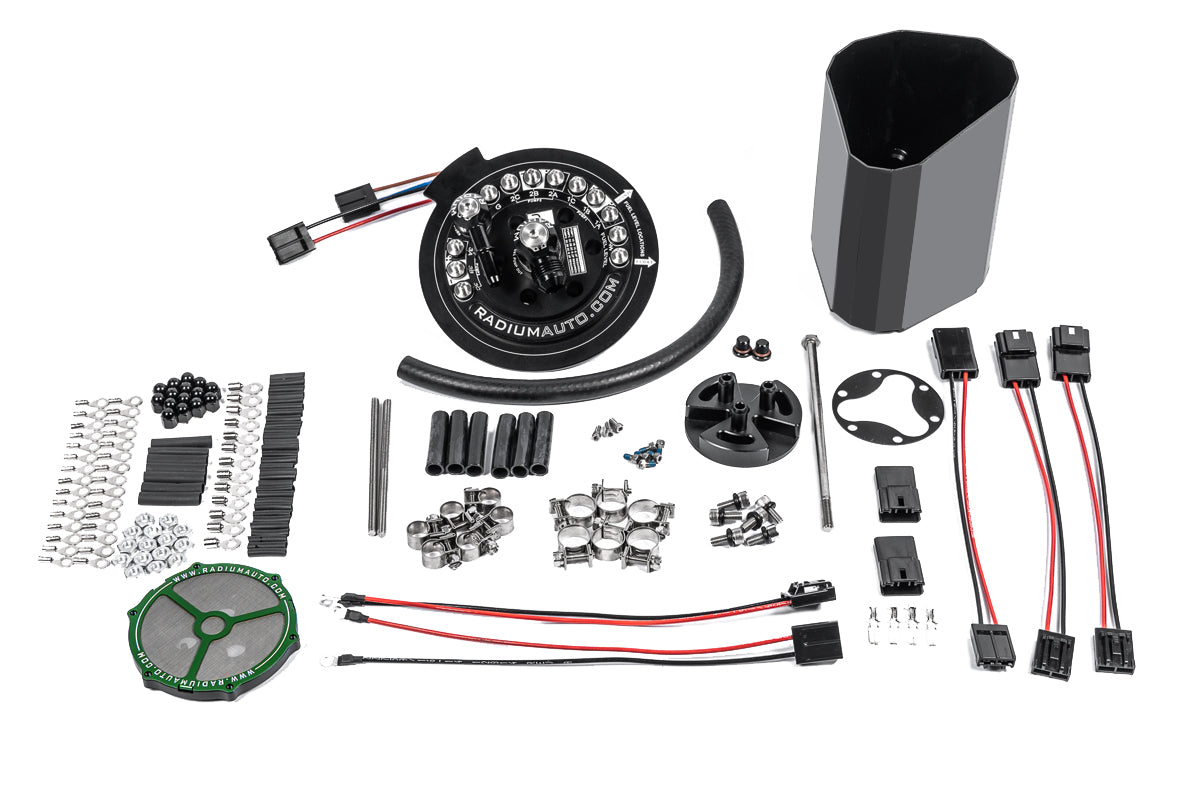

There will be enough components included to use 1, 2, or 3 fuel pumps. Depending on the setup, some parts will simply not be used.

FITTINGS

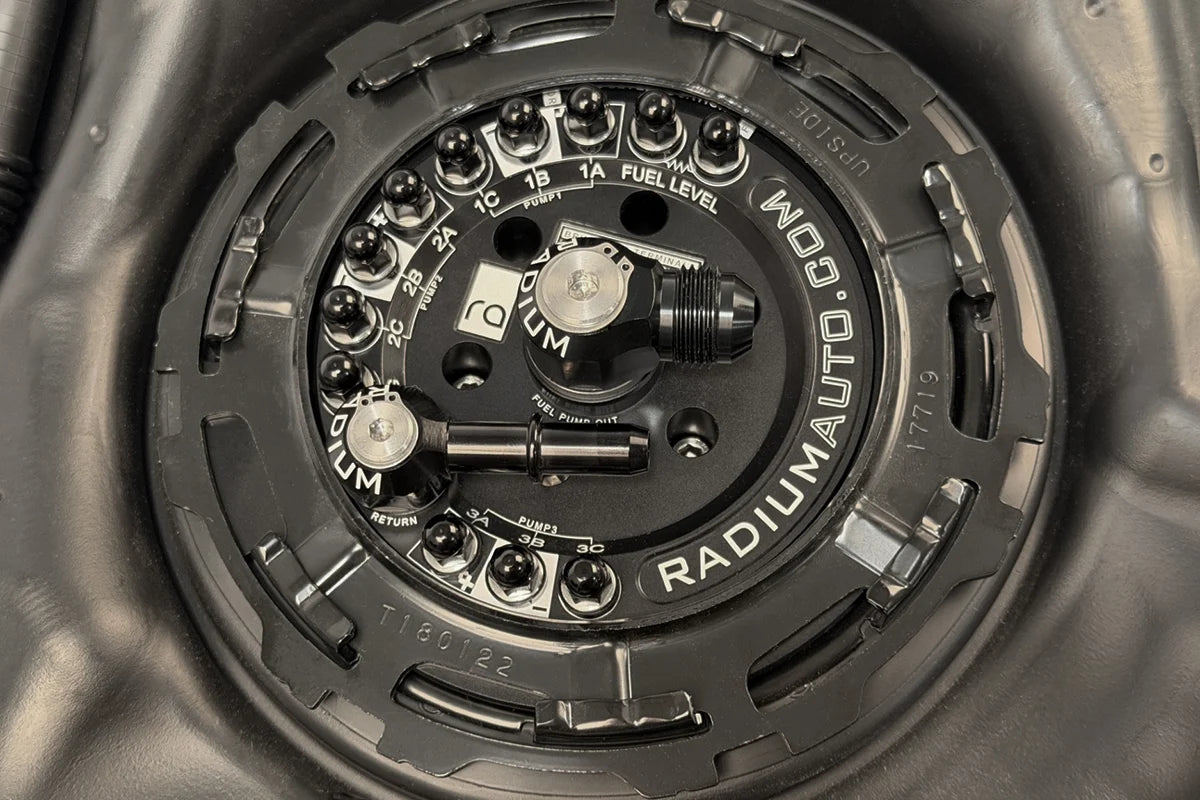

The merged fuel pump outlet is tapped for 10AN ORB (7/8"-14) female threads on the top plate. However, a low profile 8AN male fitting is provided to connect to an aftermarket fuel line (not included). The fuel return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. A low profile SAE quick connect fitting is provided to connect to the factory feed line which can be repurposed as a return line. All fittings are machined low enough to clear the surrounding area.

FUEL STARVATION PROTECTION

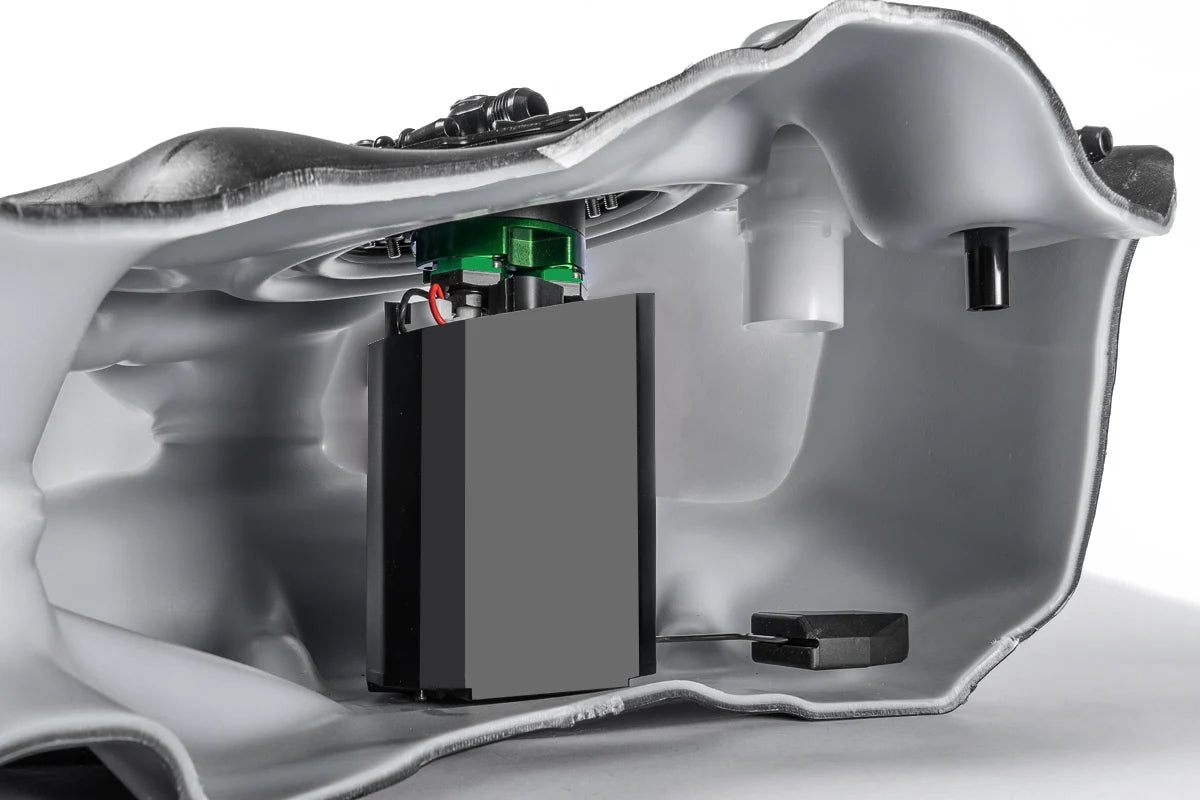

Several mechanisms work together to move fuel into the integrated collector and keep it full at all times. This ensures the pump(s) have adequate fuel available, even during aggressive driving. The integrated fuel tank collector is supplied with fuel from 3 different sources:

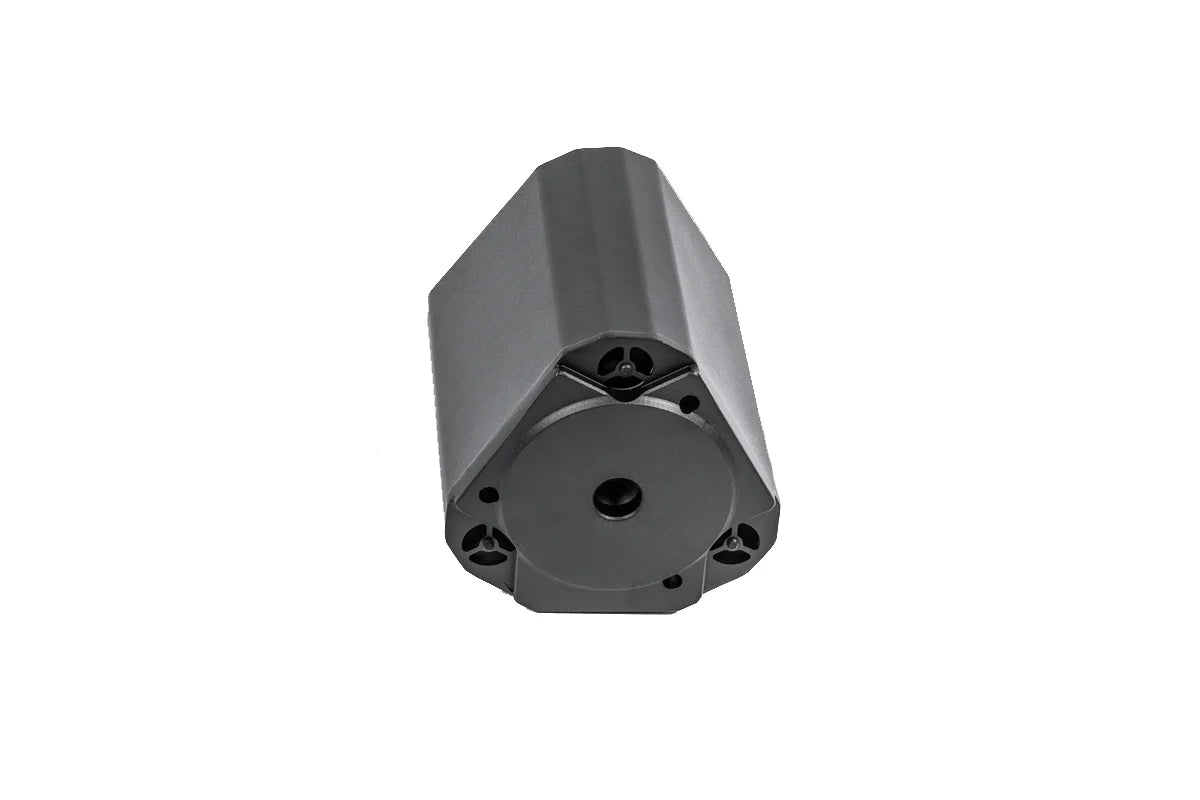

• The 1-piece anodized aluminum collector box keeps fuel trapped around the pump inlet(s).
• There are three 1-way fill valves incorporated in the bottom of the collector box that allows fuel in, but not out. Each 1-way fill valve flows 355 LPH.
• The collector box is constantly replenished with fuel returning from the pressure regulator.

ELECTRICAL

The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. They have an anti-rotation feature that prevents the terminals from spinning. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
