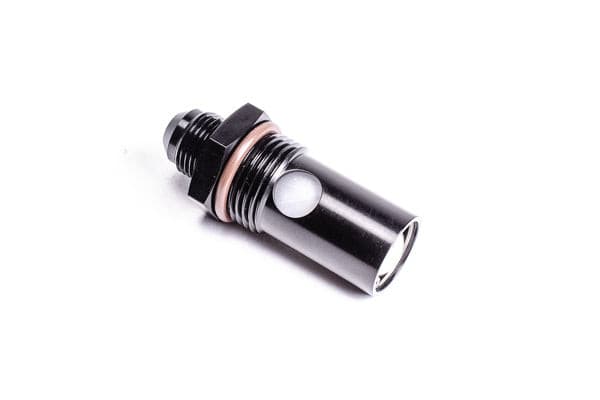

Radium Dsv, 12An Orb To 8An Male, Std Fill.

Radium Dsv 12An Orb To 8An Male, Std Fill

20-0435

Regular price £59.90 Sale price £42.58 Save £17.32
/
Shipping calculated at checkout.

Only 2 items in stock!

Radium Engineering Dynamic Safety Vent (DSV) valves feature advanced tank venting and roll-over protection for fuel cells and gas tanks. The Radium Engineering DSV valves come in different varieties for all fill type applications; standard fill and quick-fill. Simply put, the larger the vent, the quicker the fuel cell can be filled. NOTE: Be sure to lubricate the FKM O-ring prior to installing either DSV valve.


FEATURES
Fuel Tank Venting

Once the tank is filled with fuel, the upper sealing ball valve floats to the top of the internal DSV chamber shutting off the air source. This safely prevents fuel from traveling up and out of the fuel cell vent line.

Roll Over Protection
In case of an accident in which the wheels are up-ended, the lower stainless steel ball holds the ball valve down sealing the vent. This safely prevents fuel from leaking out of the fuel cell vent line.

Notes

1. DSV and filler height relationship: The vertical height of the top (shut-off) ball in the dynamic safety valve should be positioned lower than the highest point of the fuel fill point.
2. Filler and vent height relationship: The vertical height of at least one portion of the vent tubing (not included) should be positioned above the highest point of the fuel fill point.

This compact internal DSV valve can be used for fuel tanks that have -12AN ORB female threads. The external -8AN male fitting is used for all standard fuel filling. The 1-piece machined part is manufactured from billet 6061 aluminum and type-II anodized. Included are 2 ball valves, FKM O-ring, and a stainless steel retaining ring. These materials are compatible with all fuel types including alcohol fuels such as methanol and E85. It can easily be disassembled for quick cleaning, inspection, and maintenance. NOTE: This DSV comes standard on the Radium FCST.
