Radium 52mm Fuel Level Gauge, 0-90Ω
Radium 52mm Fuel Level Gauge, 0-90Ω
Radium 52mm Fuel Level Gauge, 0-90Ω
Radium 52mm Fuel Level Gauge, 0-90Ω

Radium 52mm Fuel Level Gauge, 0-90Ω

20-1847

£47.91 £39.99 Save £7.92
/
Shipping calculated at checkout.
  • Low stock - 7 items left
  • Backordered, shipping soon

Radium Engineering

fuel level gauge can be used with any 0-90 ohm fuel level sensor. Displays EMPTY to FULL and the corresponding 0-90Ω measurement. With a simple toggle of a button, there are 8 illuminated colors to choose:

  •  WHITE
  • AMBER
  • YELLOW
  • RUST
  • PURPLE
  • RED
  • GREEN
  • BLUE

The removeable 4-pin connector simplifies installation. Available with black bezel and black face only.

SPECS & FEATURES

52MM FUEL LEVEL GAUGE

  • Resistance Signal: 0-90 Ω
  • Operation: Stepper Motor
  • IP67: Water Resistant to 1m and Dust-Tight
  • Operating Voltage: 9-32 VDC
  • Operating Temperature: -30~70C (-22F~158)
  • Curved Glass (Anti-Fogging Function)
  • 8 Illuminated Colors: White, Amber, Yellow, Rust, Purple, Red, Green, Blue
  • Gauge Bezel Outside Diameter: 55.5mm
  • Required Mounting Hole: 52-53mm
  • Electrical Connector: Removable

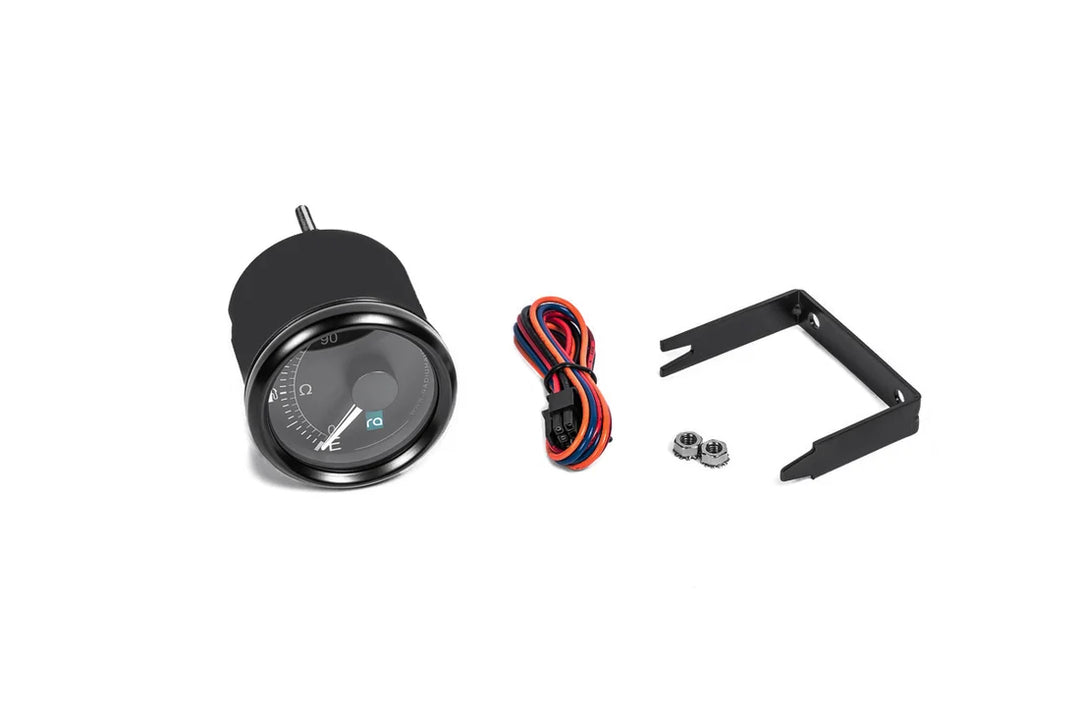

  • Fuel level gauge
  • Mounting bracket
  • Mounting hardware
  • Wire connector flying lead
