Specifications, compatibility and supplied components
Product details

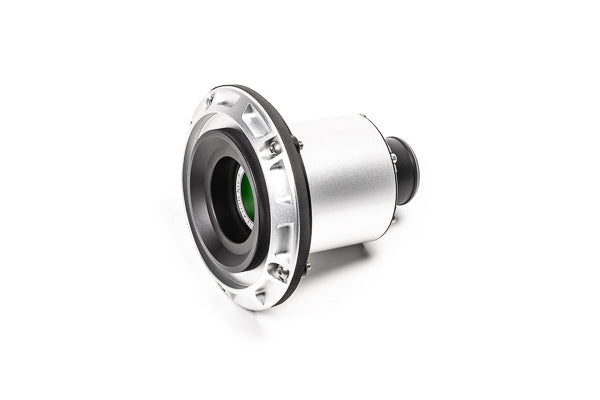

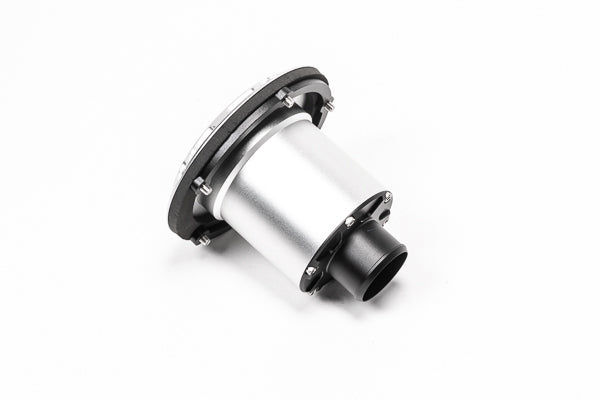

Radium Engineering 1.5in remote-mount vented female dry-break filler, designed for installation on an external surface such as a vehicle fender. Installation requires a 77mm (3.03in) hole.
Includes a 1.5in female dry break, gasket, stainless steel hardware, aluminium housing and aluminium nut ring. The vented fuel cap includes roll-over protection. Components, materials and seals are compatible with unleaded and leaded petrol, diesel, aviation petrol, methanol, ethanol, E15 and E85.

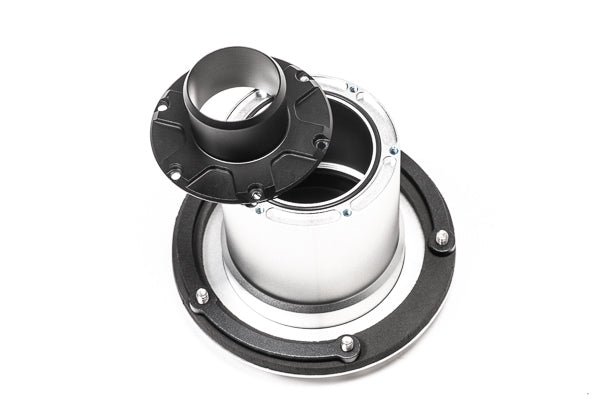

The O-ring-sealed 1.5in barbed outlet is interchangeable. Remove six screws to fit a different outlet adapter (sold separately).
Specifications:
- Filler hose requirement: 1.5in
- Flange outer diameter: 4.75in
- Bolt circle diameter: 4.25in PCD
- Height (dry break to barb): 4.08in
- Mating part: 20-0496, 1.5in male dry break
