Specifications, compatibility and supplied components
Radium Engineering 1.5-inch vented female direct-mount dry-break filler (part number 20-0495-V). Original product specifications, included parts, fitment restrictions and installation details are retained below.
Radium Engineering Dry Break 1.5In Female Direct Mount Vented

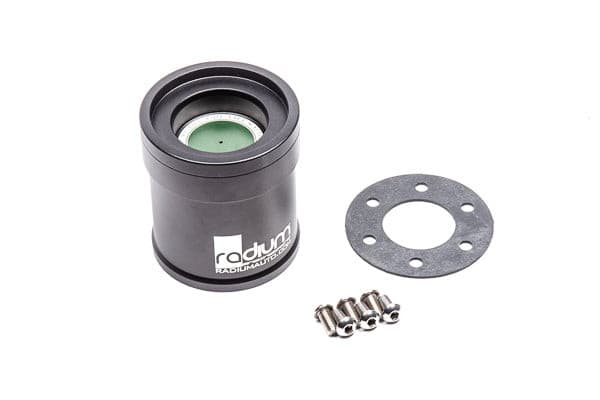

Designed for direct mounting onto a fuel cell. For mating, a 6-bolt flange with a 2.18" PCD bolt circle (as found on the FCST) is required. Includes 20-0549-V Dry Break, 1.5in, Female, Vented as well as an aluminum housing, stainless steel hardware, and a gasket. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).
Specifications:
Height: 3.43" (Dry Break to Gasket)
Mate: 20-0496 Dry Break, 1.5in, Male
