Radium Manifold 044-Port Bosch Pumps Reuses Check Valves

20-0463

£167.85 £121.76 Save £46.09
/
Shipping calculated at checkout.
Only 4 items in stock!

Radium Engineering 044 bosch fuel pump manifold This aluminum CNC machined fitting allows flexibility when plumbing a coolant or fuel system using multiple pumps or fuel rails. It features two -6AN ORB (9/16-18 thread) ports and two -8AN ORB (3/4-16 thread) ports. Approximately 4.5" long. The 6AN ORB ports are 2.85" apart (center to center). Fully anodized and resistance to all fuel types.

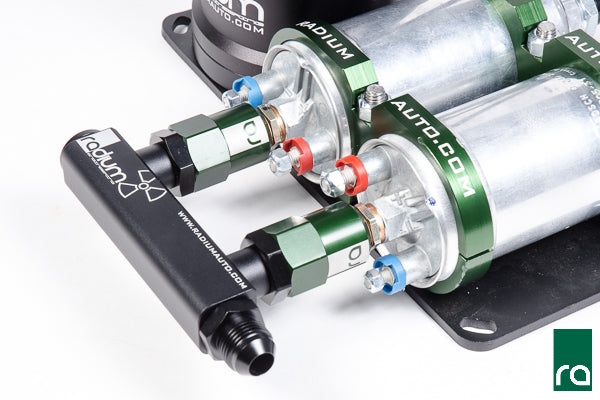

This allows flexibility when plumbing a fuel system using multiple Bosch pumps. NOTE: this kit permits the Bosch check valves. The pumps can be staged.

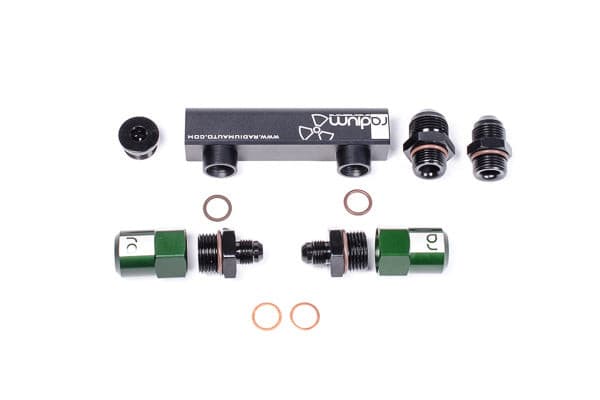

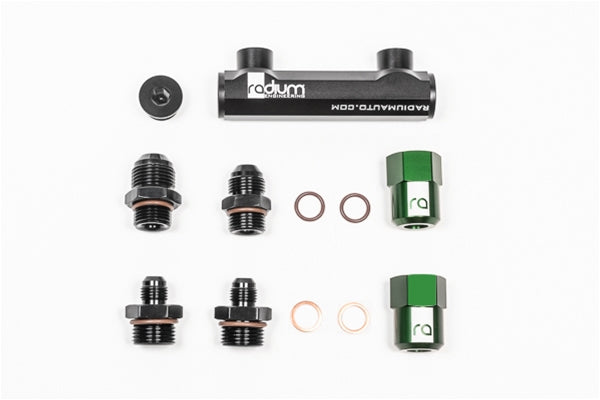

4-Port Manifold
8AN ORB Plug
8AN ORB to 8AN Male
8AN ORB to 10AN Male
10AN ORB to 6AN Male (x2)
Bosch 044 Check Valve Adapter (x2)
M12 Crush Washer (x2)
6AN ORB FKM O-ring (x2)
