Specifications, compatibility and supplied components
Product details

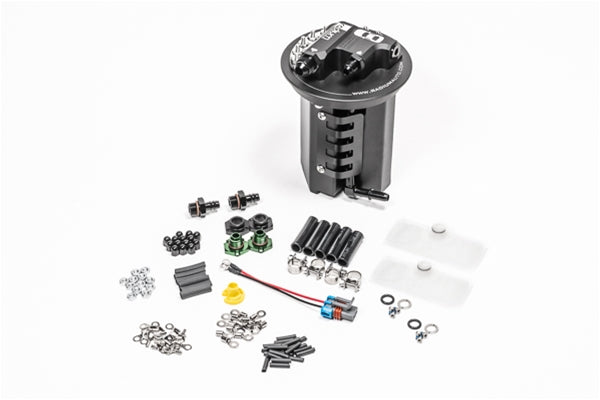

Radium Engineering 2012–2021 Subaru BRZ and Toyota GT86 fuel pump hanger (part number 20-1073). See the detailed original specifications, application restrictions and installation information below.
Radium Engineering fuel pump hanger has been redesigned for improved fuel collection and for ease of installation. It completely replaces the factory in-tank fuel pump module and allows 1 or 2 aftermarket fuel pumps to be used. The OEM level sender is retained in order to maintain factory functionality.
FUEL PUMP COMPATIBILITY
*Ti Automotive Walbro F90000267
*Ti Automotive Walbro F90000274
*Ti Automotive Walbro F90000285
**Deatschwerks DW440 (brushless)
**Fuelab 49614 (brushless)
**Protec 11928 (brushless)
There will be enough components included to use 1 or 2 fuel pumps. Depending on the setup, some parts will simply not be used.
*Sock filters are provided in these kits for these fuel pumps.
**Sock filters are included from the fuel pump manufacturer.
FEATURES
-8AN ORB to 8AN Male Pump-Out Fitting
-6AN ORB to 6AN Male Return Fitting
-Collector Box with 1-Way Fill Valve
-Venturi Jet Pump Siphon
-High Current Electrical Connections
-Anodized Fuel Level Sender Mount
-Twin Fuel Pump Compatibility
-Brushless Pump Compatibility
-Single Merged Fuel Pump Outlet
-Stainless Hardware and Clamps
-Alternative Fuel Compatibility
PREVENTING FUEL STARVATION
The kit includes a 1-piece anodized aluminum collector box that makes installation a breeze and keeps fuel trapped around the pump inlet(s). There is a 355 LPH 1-way fill valve incorporated in the bottom of the collector that allows fuel in, but not out.
20-1073 COMPATIBILITY
12-21 Toyota GT86
12-20 Subaru BRZ
12-16 Scion FR-S
20-1074 COMPATIBILITY
2022+ Toyota GR86
2022+ Subaru BRZ
FUEL HANGER PLUMBING KIT BRZ/GT86/GR86
