Specifications, compatibility and supplied components
Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profile
Suitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.

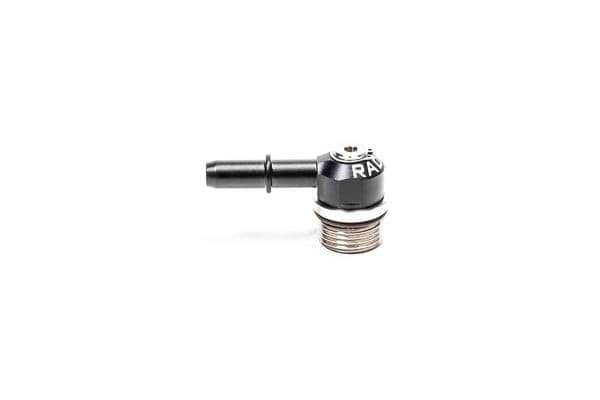

Swivel fitting. Stainless steel and aluminum construction. Screws into a 10AN ORB (O-ring port) and has a swiveling 3/8 SAE Quick Connect male.
These adapter fittings are available in a variety of configurations. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connection
To determine the required size, simply measure the outside diameter of the male fitting as shown below.
0.3125 = 5/16"
0.375 = 3/8"
0.50 = 1/2"
