Radium Fuel Rail Top Feed Conversion Mazda 13B Primary
20-1113
- Low stock - 2 items left

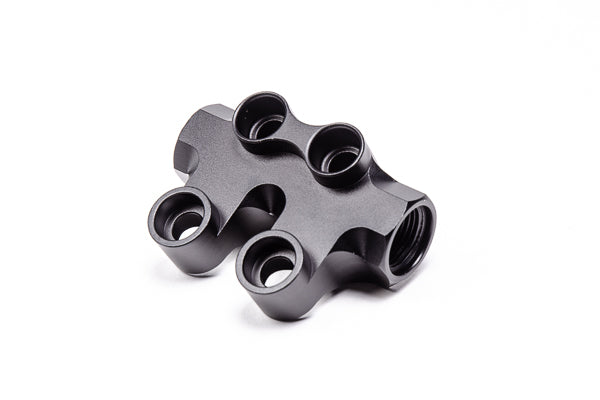

Radium Engineering high flow primary fuel rail is for the 13B-RE and 13B-REW rotary engine found in the 1990-1995 Mazda/Eunos Cosmo and 1992-2002 Mazda RX7 FD3S. The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements
The three 8AN ORB ports are compatible with these fittings HERE. The extra center port allows additional fuel system accessories such as the OEM fuel temperature sensor (using 14-0421), a pressure transducer, Radium fuel pulse damper (shown below) etc.
COMPATIBILITY
- 90-95 Mazda/Eunos Cosmo 13B-RE
- 92-02 Mazda RX7 FD3S 13B-REW
FUEL INJECTORS

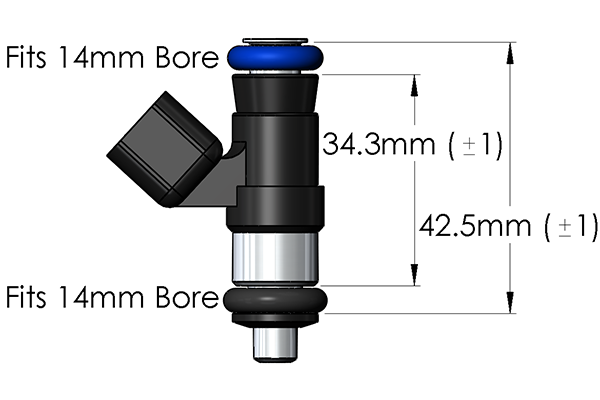

An injector with the following dimensions must be used when installing this rail.
The o-rings must be 14mm and the height must be the short 34mm body height shown.
Many injector manufacturers will offer injectors in this height and o-ring style. Below are a few examples of the part numbers that would be used when ordering Injector Dynamics injectors.
- Injector Dynamics 1050-XDS 1050.34.14.14
- Injector Dynamics 1300-XDS 1300.34.14.14
- Injector Dynamics 1700-XDS 1700.34.14.14
- Injector Dynamics 2600-XDS 2600.34.14.14
Fuel Injectors are NOT included and must be purchased

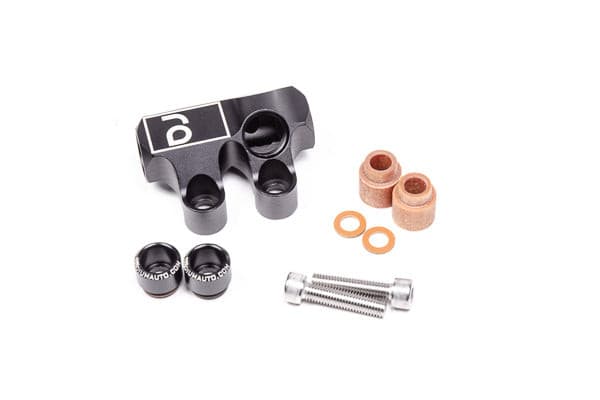

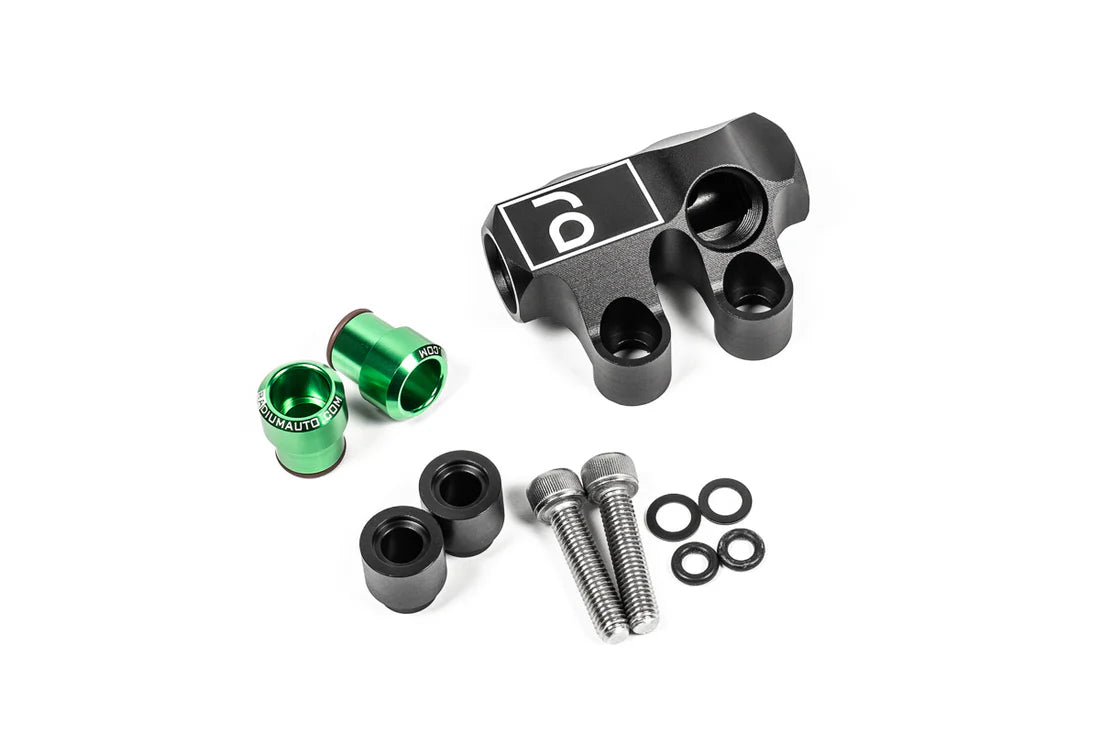

INCLUDED
- Anodized billet aluminum fuel rail
- Anodized billet aluminum injector seats (x2)
- Thermal spacers (x2)
- Mounting hardware
