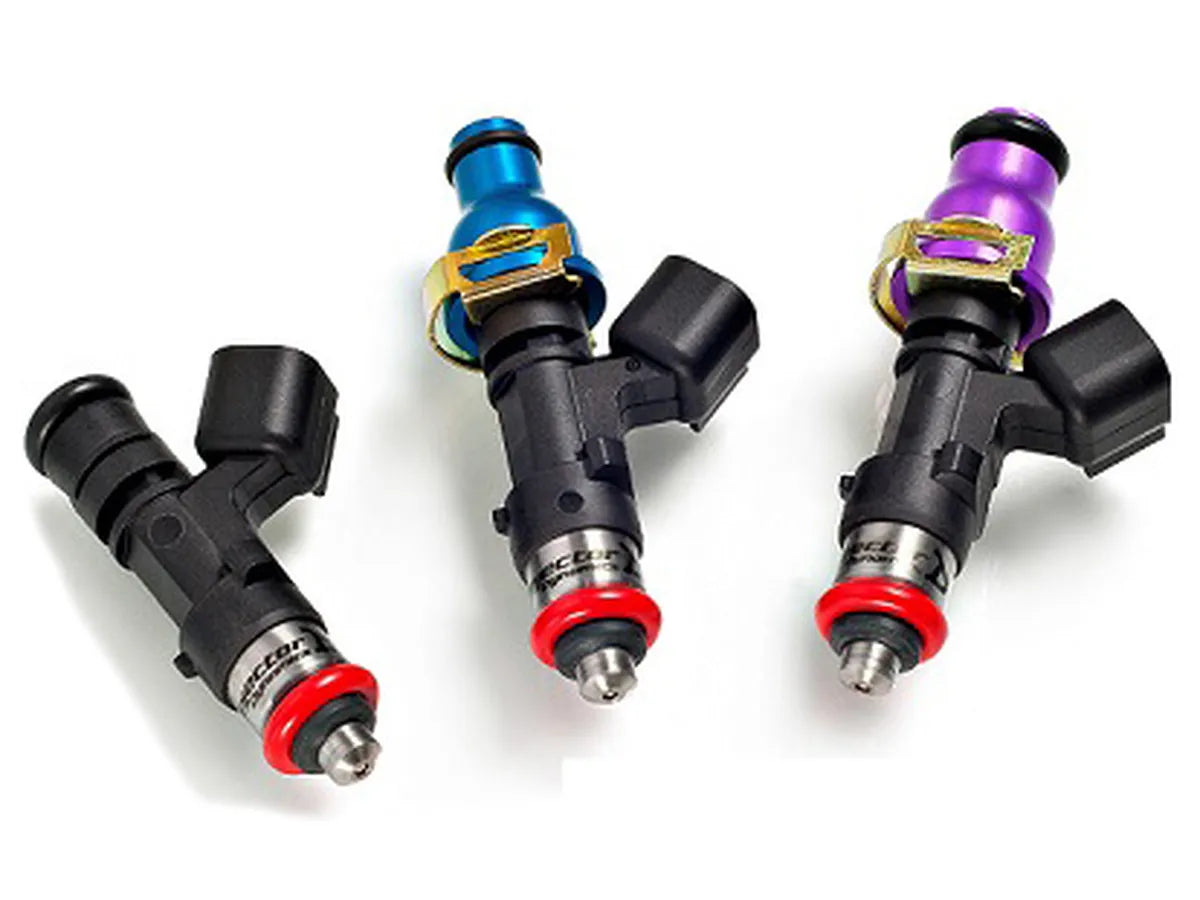

The best approach to picking motorsport fuel injectors is to match injector flow, type, and fitment to your target horsepower and fuel. This guide walks tuners through the critical specs, sizing math, and installation checks to ensure reliable high-performance fueling.
Direct answer: What to look for when choosing motorsport fuel injectors
Start by prioritizing flow rate, injector type (low-impedance vs high-impedance, top-feed vs bottom-feed), and fuel compatibility. Flow rate, usually measured in cc/min or lb/hr, determines whether the injector can deliver enough fuel at peak power. Injector type and electrical characteristics affect how your ECU drives the injectors and whether additional hardware is required.
Also check duty cycle, spray pattern, and response time/latency. A good injector for motorsport builds maintains an effective duty cycle below 85% at peak RPM to allow tuning margin. Spray pattern affects atomization and combustion across different head and port designs. Finally, confirm mechanical fit — O-rings, length, and connector type — to avoid surprises at install.
- Flow rate aligned to target horsepower
- Fuel compatibility (petrol, E85, methanol)
- Electrical impedance and ECU drive capability
- Correct physical fitment for rail and manifold
Why flow rate matters most (how to size injectors for power and tuning headroom)
Flow rate is the primary limiter for fueling a high-power engine: insufficient flow causes lean conditions at WOT, risking detonation and engine damage. To size injectors, calculate base fuel needed using target horsepower and a brake specific fuel consumption (BSFC) value appropriate for your engine and fuel. For high-performance naturally aspirated engines use a BSFC around 0.45–0.50 lb/hp/hr; forced-induction setups typically need 0.55–0.65 lb/hp/hr depending on efficiency.
After computing required fuel, add a safety margin by sizing injectors so peak operation stays under a recommended effective duty cycle of ~80–85%. You can either: increase flow by selecting larger injectors, or use injector staging/dual-injector setups to keep linear control and idle behavior. Remember that altitude, boost, and intercooling change air density and therefore required fuel: higher altitude reduces flow needs slightly; increased boost raises required flow significantly.
Choosing the right injector fitment and compatibility
Mechanical compatibility covers O-ring diameters, length-to-tip, and top-feed vs bottom-feed orientation; electrical compatibility covers connector type and impedance. Many aftermarket injectors follow OEM dimensions, but some high-flow units use taller bodies or different inlet styles. Confirm rail spacing and manifold injector bores before ordering to avoid machining or adapter needs. If your project involves classic platforms like Honda B16 swaps, Mazda RX-7 ports, or R33 GTR manifolds, measure and compare physical specs rather than assuming fitment.
Electrical fit means matching the injector impedance to your ECU or using drivers/resistors as needed. Low-impedance (saturated) injectors often require a compatible driver or resistor pack; high-impedance (peak-and-hold) units may need different pulse strategies. For shopping reference, check curated collections — for example, see Injector Dynamics - Radiumshop Uk — to compare models and confirmed fitments before purchase.
Common mistakes to avoid when selecting motorsport injectors
Avoid undersizing injectors to the point they run >90% duty at peak power; that leaves no tuning headroom and compromises reliability. Oversizing excessively is also a problem: very large injectors can make idle and low-load fueling too coarse unless your ECU supports multi-point trim or low-pulsewidth control. Don't assume all injectors from a brand share identical latency and spray characteristics — even same-brand models can vary across flow rates.
Other frequent errors: ignoring fuel type (E85 and methanol require materials compatible with alcohols), neglecting injector latency in timing calculations, and failing to upgrade fuel rail pressure, pump capacity, and return lines to match increased flow. Upgrading injectors without addressing the pump or rail often results in pressure collapse and inconsistent fueling, so plan the fuel system holistically.
Injector Dynamics ID1050X Injectors 14mm Set of 4 is a strong choice for tuners seeking a balance of high flow, consistent latency, and street-friendly idle behavior; it fits builds where reliable mid-to-high power fueling and precise tuning headroom are priorities.
Injector Dynamics ID1050X Injectors 14mm Set of 4
The Injector Dynamics ID1050x is a built-to-spec motorsport injector co-developed with Bosch Motorsport, evolving from the ID1000 and X-Series lessons. Available in 14mm sets (4/6/8) and compatible with various fuel rails.
FAQ
How do I calculate the injector size needed for my target horsepower?
Calculate required fuel: horsepower × BSFC (lb/hp/hr) × safety margin, then divide by number of injectors and convert to cc/min or lb/hr. Use ~0.45–0.50 BSFC for NA and ~0.55–0.65 for forced induction, and aim to keep injectors under ~80–85% duty at peak RPM. This gives both required flow and headroom for tuning.
Can I run the same injectors on E85 and petrol, or do I need different units?
You can use some injectors on both fuels if they are constructed from alcohol-compatible materials and sized for the increased flow E85 demands (roughly 30% higher flow than petrol). Verify manufacturer compatibility: seals and coatings must tolerate alcohol, and calibration will change due to E85's lower stoichiometric ratio.
How important is matching the fuel rail and pump to high-flow injectors?
Matching is critical. High-flow injectors require a fuel pump and rail that maintain stable pressure at max demand; inadequate pump flow or a too-small rail causes pressure drop and lean conditions. Upgrade the pump, lines, and regulator as part of a high-flow injector plan to ensure consistent fuel pressure and response.
What are signs my injectors are not suitable after installation?
Signs include unstable idle, long cranking times, lean or rich AFRs under load, misfires at high RPM, or ECU logging high duty cycles. Physical indicators include fuel smell, visible leaks at O-rings, or inconsistent spray patterns during bench testing. If these appear, re-evaluate sizing, fitment, and fuel supply.
Key takeaway: choose motorsport fuel injectors by prioritizing flow rate, fuel compatibility, injector type, and fitment while planning the entire fuel system. If you need more help matching injectors to a specific vehicle or target power, consult a tuner or supplier with measured flow data and fitment guides.
